138pro Handheld Portable Digital Oscilloscope 2.4 Inch Multi-function Digital Oscilloscope One Button Logic Analyzer

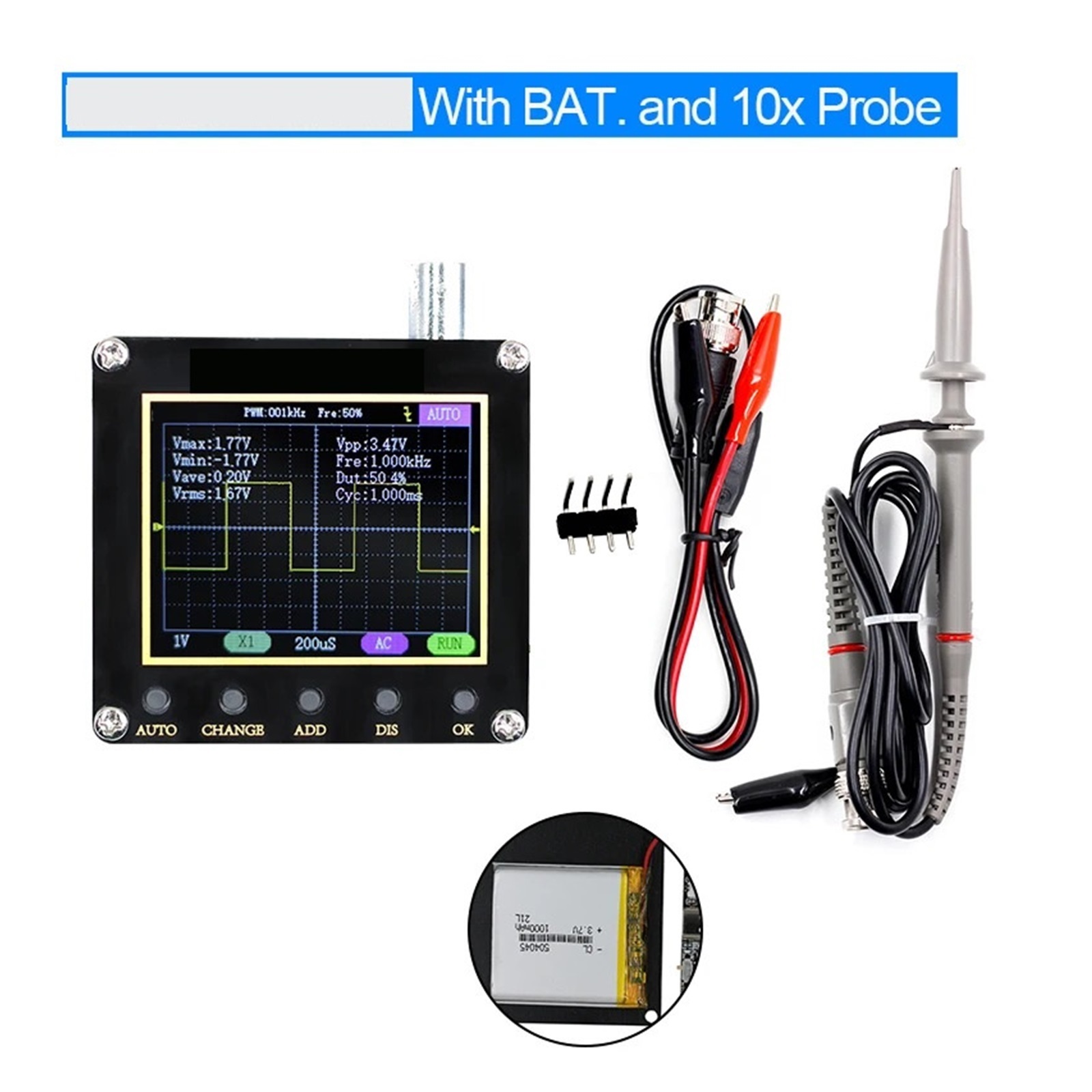

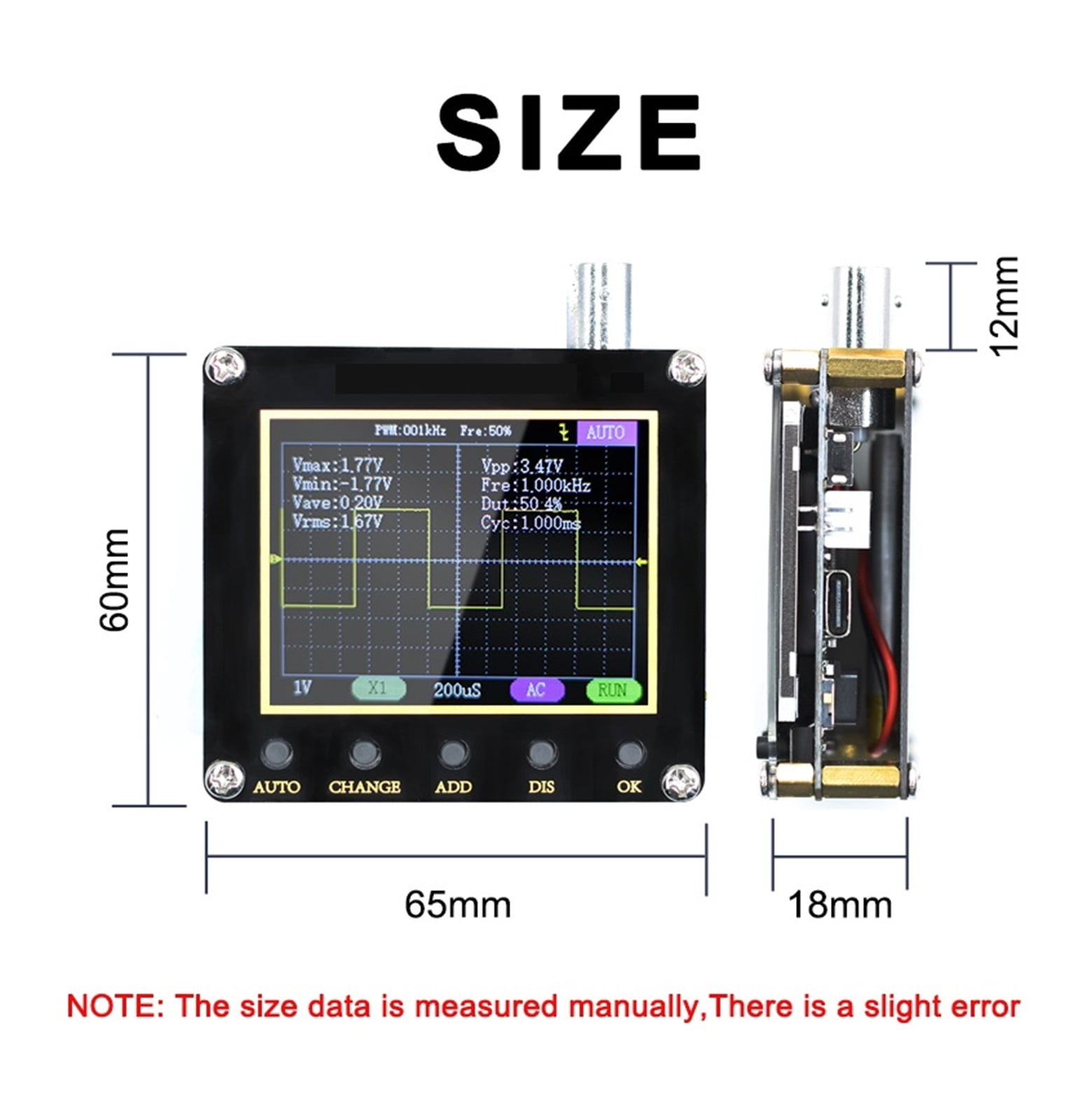

<p>Specifications: </p><p>Material: PCB </p><p>Type: with P6100(10x probe), with battery(1250mAh) </p><p>Sampling rate: 2.5MS/s </p><p>bandwidth: 200KHz </p><p>Voltage ranges: </p><p>X1: ±40V(Vpp:80V) </p><p>X10: ±400V(Vpp:800V) (only type3&amp;4) </p><p>Trigger modes: Single, Automatic, Normal </p><p>Coupled mode: AC/Direct current </p><p>PWM output: 3.3V</p><p>Frequency: 0-80kHz </p><p>Duty cycle: 0-100% </p><p>Package size: 65 * 60 * 18mm / 2.6 * 2.4 * 0.8in </p><p>Package weight:72g / 2.5ounce </p><p>Packing list: </p><p>1 * Oscilloscope </p><p>1 * P6100 Probe</p>

• Portable Oscilloscope: Compared with traditional oscilloscopes,this oscilloscope with smaller size and more suitable for carrying around.

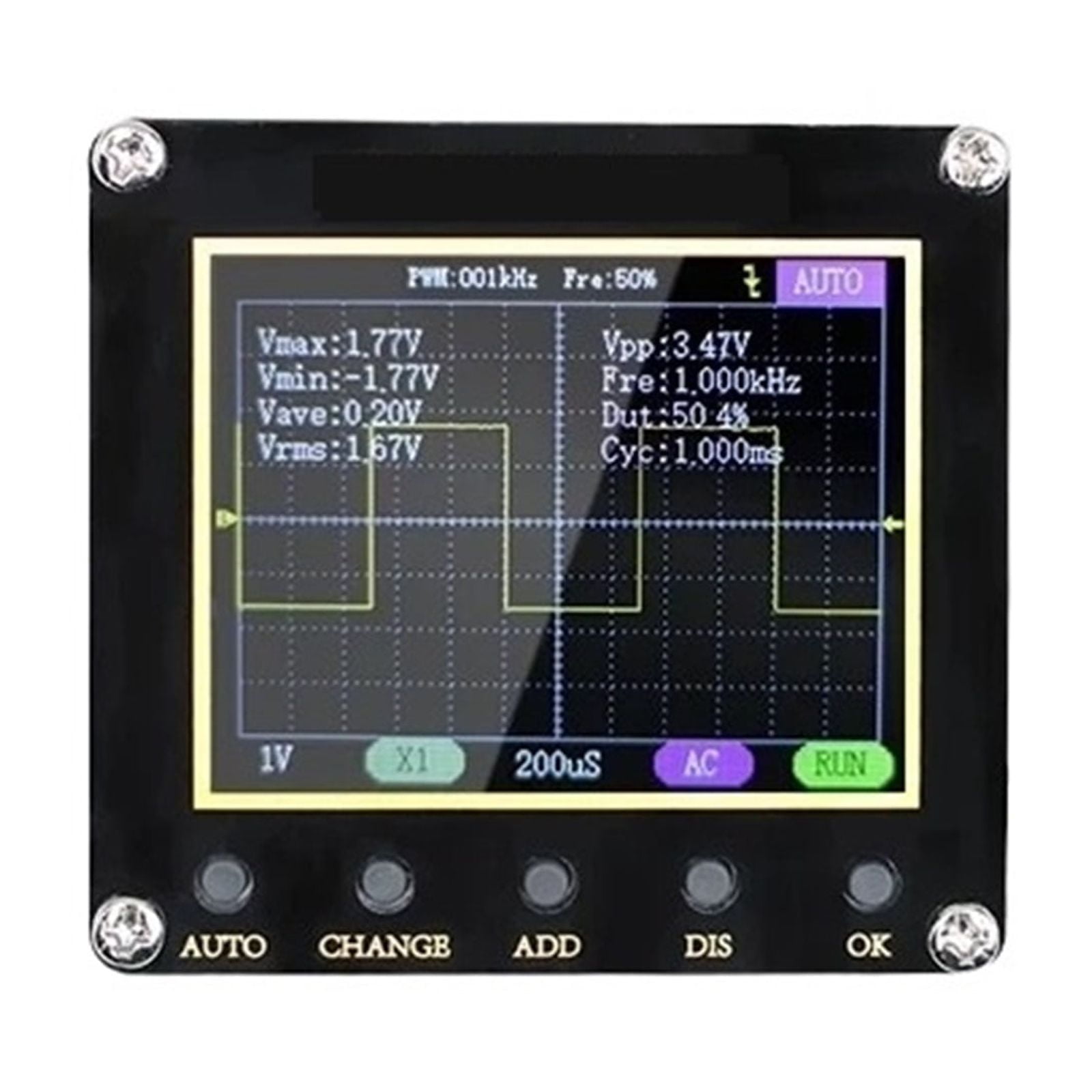

• One Button Auto Adjust: One button AUTO setting all parameters and quick waveform measurement. Long press AUTO button to quick calibration baseline.
• 3 Trigger Modes: The singles trigger mode for tests unexpected non-periodic signals, the automatic trigger modes for test period analogs signals and normal trigger is for tests digital logic signals.

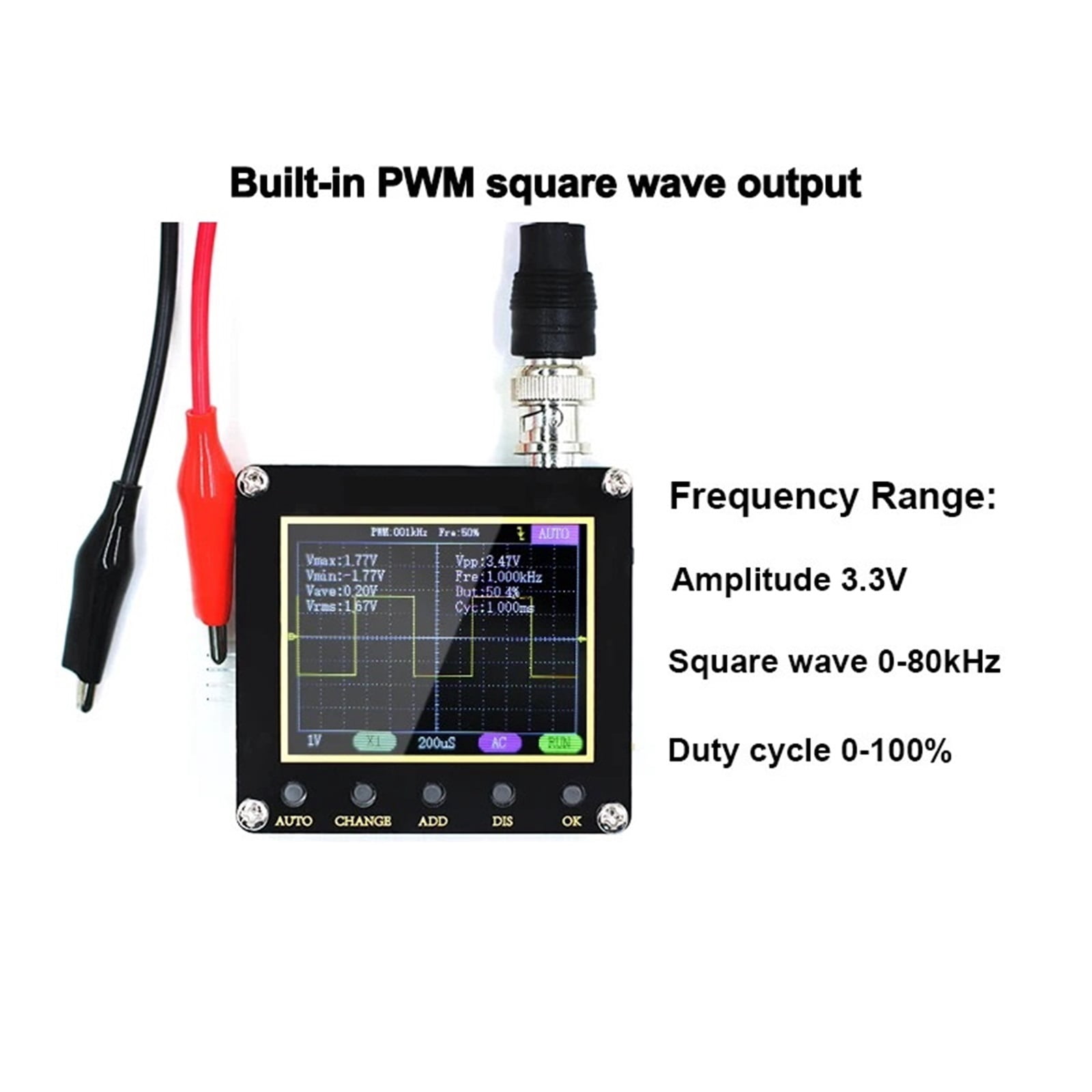

• PWM Square Waves Output: This oscilloscope with the PWM square waves output function, 0-80kHz frequency ranges and 0-100% duty cycle.
• Wide Applications: This oscilloscope is suitable for car repairing, DIY, home appliance maintenance, experiment teaching, etc.
