AV Access HDBaseT 3.0 HDMI KVM Extender, Uncompressed 5K@60H 4K@120Hz up to 100m/330ft, 144/165/240Hz Refresh Rate, Zero Latency (4KEX100-KVM-Pro)

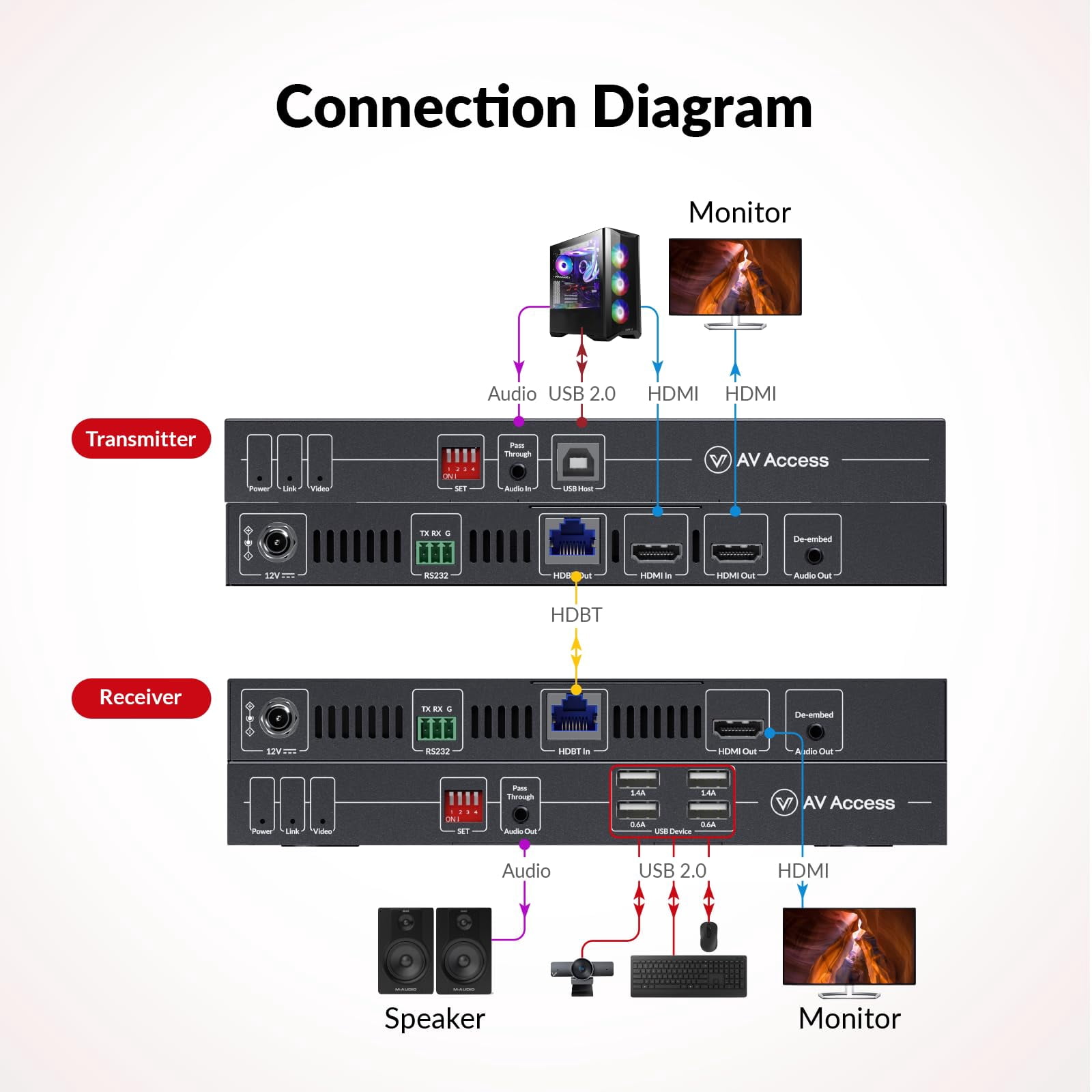

<p>Advanced HDBaseT 3.0 HDMI KVM Extender, Uncompressed 5120x1440@60Hz up to 100m/330ft, 144/165/240Hz Refresh Rate, Zero Latency</p><p><strong style="color: rgb(165, 0, 33);">Overview </strong></p><p><span style="color: rgb(0, 0, 0);">This product is an HDMI 2.0 extender based on the new generation of HDBT 3.0 </span></p><p><span style="color: rgb(0, 0, 0);">platform, which can transmit the uncompressed video signal up to 4K@60Hz </span></p><p><span style="color: rgb(0, 0, 0);">4:4:4 8-bit over single 100m Cat 6A/7 F/FTP or U/FTP cable. One HDMI output </span></p><p><span style="color: rgb(0, 0, 0);">port on transmitter is used for HDMI loop out. The kit features KVM function for </span></p><p><span style="color: rgb(0, 0, 0);">remote USB control. It also supports audio pass-through from the transmitter </span></p><p><span style="color: rgb(0, 0, 0);">to the receiver and audio de-embedding on both sides. The transmitter and </span></p><p><span style="color: rgb(0, 0, 0);">receiver each have one RS232 port for RS232 pass-through or firmware </span></p><p><span style="color: rgb(0, 0, 0);">upgrade, which can be select through the DIP switch. With one-way PoH, one </span></p><p><span style="color: rgb(0, 0, 0);">power adapter is needed to be connected to the receiver to power both units. </span></p><p><strong style="color: rgb(165, 0, 33);">Features </strong></p><p><span style="color: rgb(0, 0, 0);"> HDMI 2.0 and HDCP 2.2 compatibility. </span></p><p><span style="color: rgb(0, 0, 0);"> Supports transmitting 4K@60Hz 4:4:4 8bit signal without compression and </span></p><p><span style="color: rgb(0, 0, 0);">supports any HDR format, including Dolby Vision and HDR10+. </span></p><p><span style="color: rgb(0, 0, 0);"> Supports transmitting 4K@60Hz 4:4:4 signals up to 100m/330ft via Cat </span></p><p><span style="color: rgb(0, 0, 0);">6A/7 F/FTP or U/FTP cable. </span></p><p><span style="color: rgb(0, 0, 0);"> Supports USB 2.0 pass-through over HDBT, and up to 350Mbps data </span></p><p><span style="color: rgb(0, 0, 0);">transfer. </span></p><p><span style="color: rgb(0, 0, 0);"> Provides USB Device ports with high power, for supporting higher power </span></p><p><span style="color: rgb(0, 0, 0);">USB devices connected. </span></p><p><span style="color: rgb(0, 0, 0);"> Supports local HDMI loop-out. </span></p><p><span style="color: rgb(0, 0, 0);"> Supports audio pass-through from transmitter to receiver. </span></p><p><span style="color: rgb(0, 0, 0);"> Supports audio de-embedding at both ends. </span></p><p><span style="color: rgb(0, 0, 0);"> Supports one-way PoH function, the transmitter can be powered by the </span></p><p><span style="color: rgb(0, 0, 0);">receiver. </span></p><p><span style="color: rgb(0, 0, 0);"> Supports bi-directional RS232 pass-through and firmware upgrade. </span></p><p><strong style="color: rgb(165, 0, 33);">Package Contents </strong></p><p><span style="color: rgb(0, 0, 0);">Before you start the installation of the product, please check the package </span></p><p><span style="color: rgb(0, 0, 0);">contents: </span></p><p><span style="color: rgb(0, 0, 0);"> Transmitter x 1 </span></p><p><span style="color: rgb(0, 0, 0);"> Receiver x1 </span></p><p><span style="color: rgb(0, 0, 0);"> Power Adapter (DC 12V/3A) x 1 </span></p><p><span style="color: rgb(0, 0, 0);"> USB 2.0 Type-A to Type-B Cable x 1 </span></p><p><span style="color: rgb(0, 0, 0);"> Phoenix Male Connectors (3-pin, 3.5mm) x 2 </span></p><p><span style="color: rgb(0, 0, 0);"> Mounting Brackets (with Screws) x 8 </span></p><p><span style="color: rgb(0, 0, 0);"> User Manual x 1</span></p>

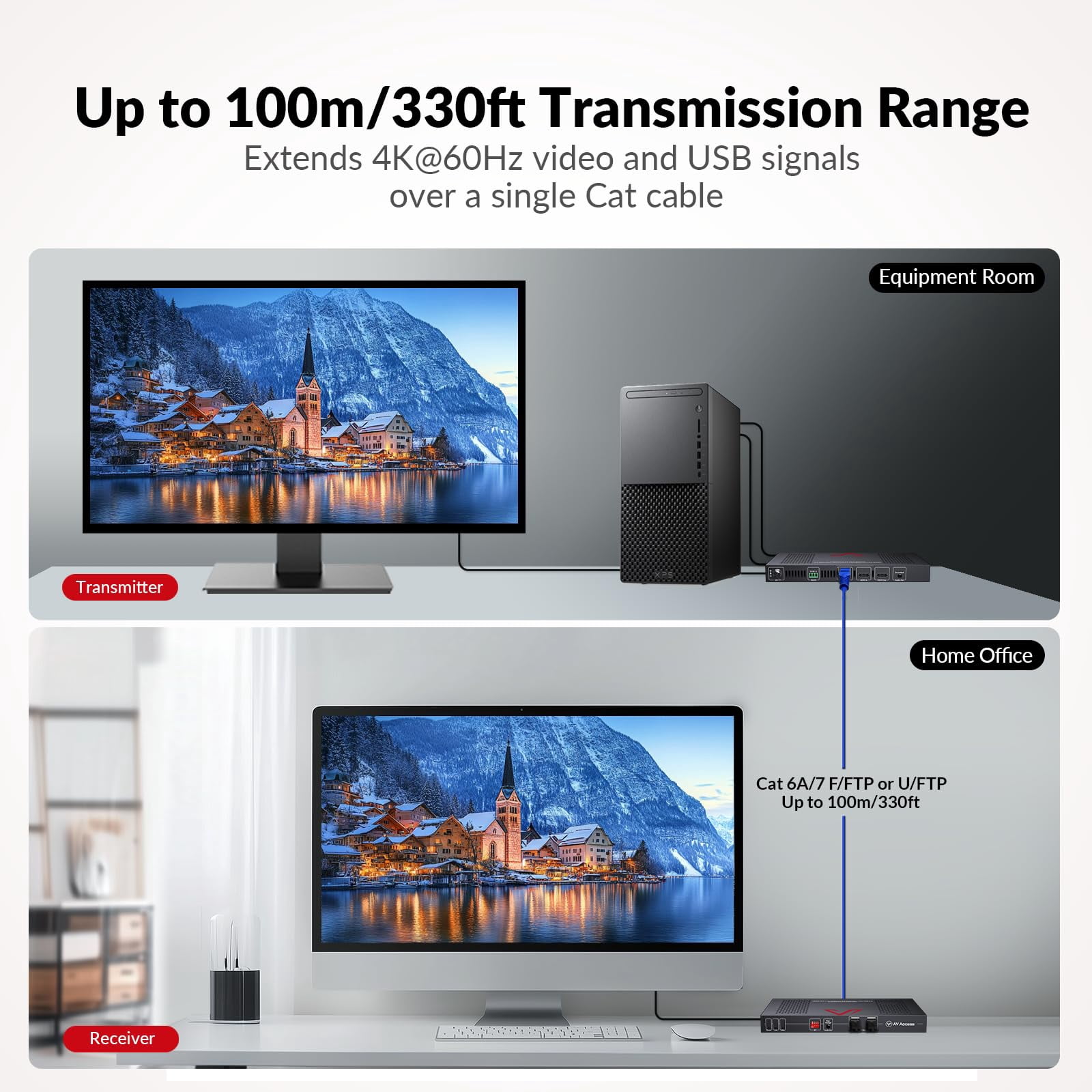

• 【Uncompressed 5K60 over HDBaseT 3.0】 Extends uncompressed 5K(5120x1440)@60Hz (4:4:4) HDMI signal up to 100m/330ft over a single Cat 6a/7 cable, with zero latency. Ideal for both home and business applications.
• 【Extend 4x USB 2.0 Devices】 Connect up to 4 USB 2.0 peripherals such as a keyboard, mouse, speakerphone, webcam, with seamless extension up to 100m/330ft and zero latency.
• 【High Refresh Rate for Fluid Motion】 Supports 4K@120Hz (YCbCr 4:2:0 mode), 1080P@240/165/144Hz, 2560x1440@144/120Hz, etc., ensuring ultra-smooth visuals for your gaming and professional applications.
• 【Versatile Audio Solutions】 Both the transmitter and receiver allow you to extract PCM 2.0 audio from the HDMI source, providing flexible integration with your audio system. The transmitter also supports HDMI Loop Out, allowing for easy connection to additional displays. Also supports audio pass-through from transmitter to receiver for seamless, synchronized audio throughout your setup.
• 【Plug & Play, Universal Compatibility】 Compatible with Windows 10/8/7/XP, Mac OS, and Linux. No drivers required - simply plug and play for hassle-free setup.
• 【Important Notes】 For 4K@60Hz transmission up to 100m, a Cat 6a/7 U/FTP or F/FTP cable is required to ensure optimal performance. When using a 4K@120Hz high refresh rate, ensure that your computer is set to YCbCr mode for optimal display quality.
