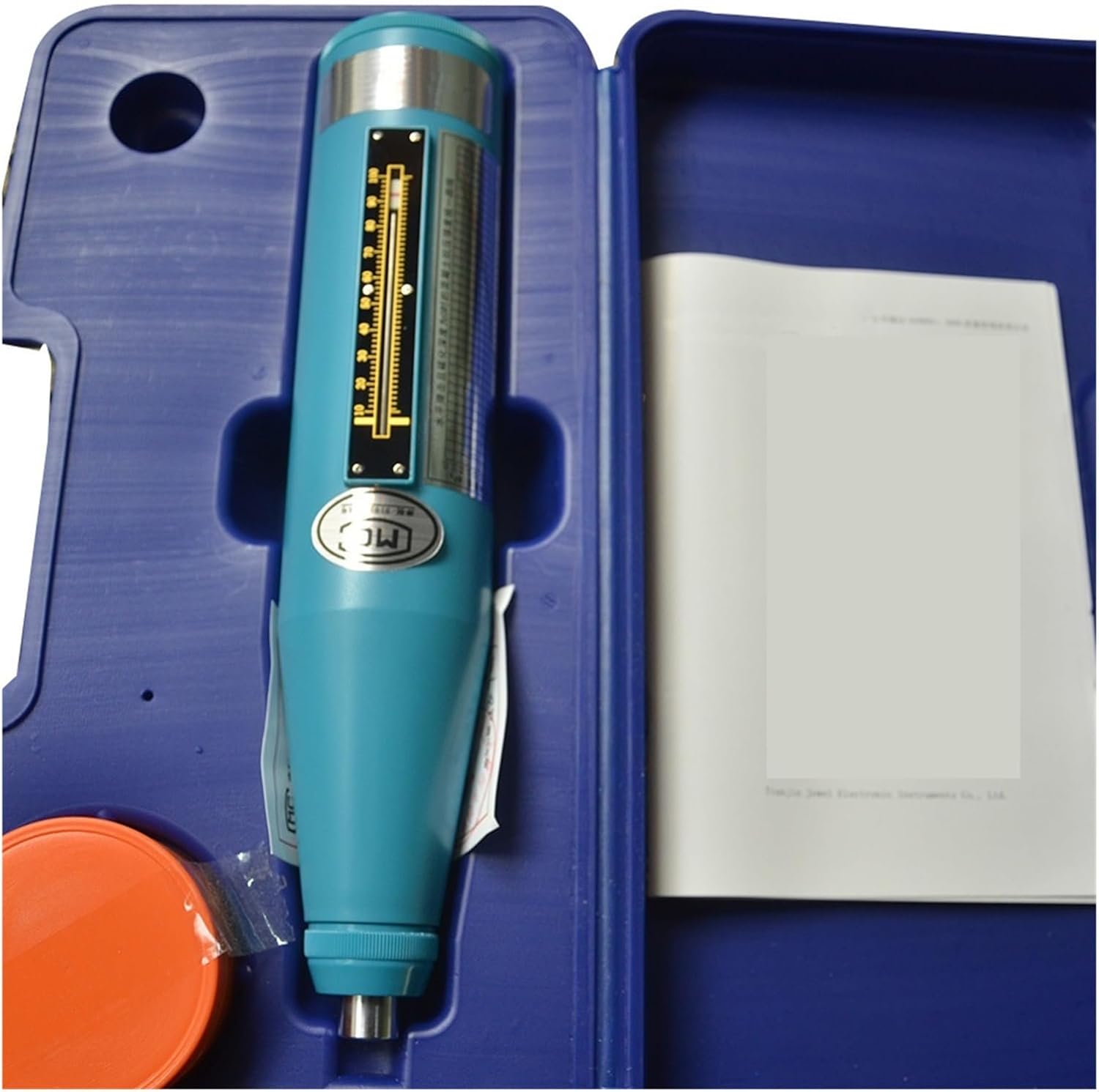

HT-225B Digital Concrete Test Rebound Hammer Elasticity Tester Resiliometer Concrete Nondestructive Instrument for Construction

Parameters:Test range: 10~60MpaStandard impact energy: 2.207J(0.225Kgf.m)Rebound hammer stroke: 75mmFriction of pointer slider: 0.5N~0.8NRebound rod spherical radius SR: 25mm1mmAverage rebound value Rm on steel anvil: 80±2Size: 54*278mmModel: HT-225BDIY supplies: ceramic tilePower supply: electronicApplication: cement testing machineTest range: 10~60MpaSR: 25mm+-1mmSize: 54*278mmFriction of pointer slider: 0.5N~0.8NColor: sent randomly

• 1) The Portable Hammer is designed with a high precision center rod that ensures durability and reliability in Concrete Rebound Test applications.
• 2) Constructed from high-quality polymer shell material, this testing equipment effectively protects the instrument from damage, significantly extending its service life for repeated Concrete Rebound Test use.
• 3) Featuring an ergonomic pointer slider as an external structure, it allows for easy friction balancing and adjustment, ensuring maximum accuracy during your Concrete Rebound Test procedures.
• 4) This resiliometer is lightweight and portable, making it for fieldwork and on-site Concrete Rebound Test measurements without compromising performance.
• 5) With user-friendly design elements, the Portable Hammer simplifies the Concrete Rebound Test process, making it accessible for professionals and beginners alike in concrete evaluation
